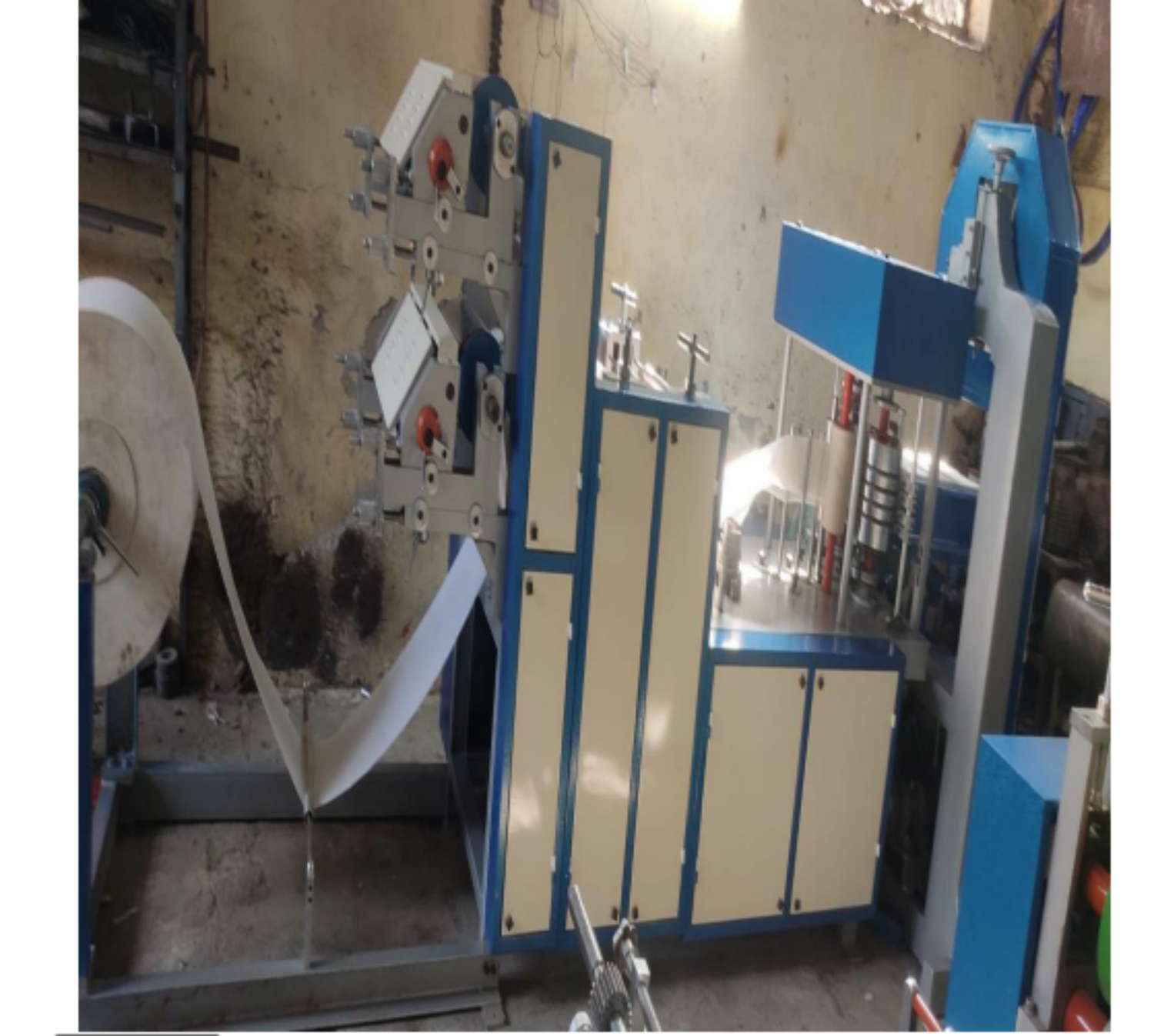

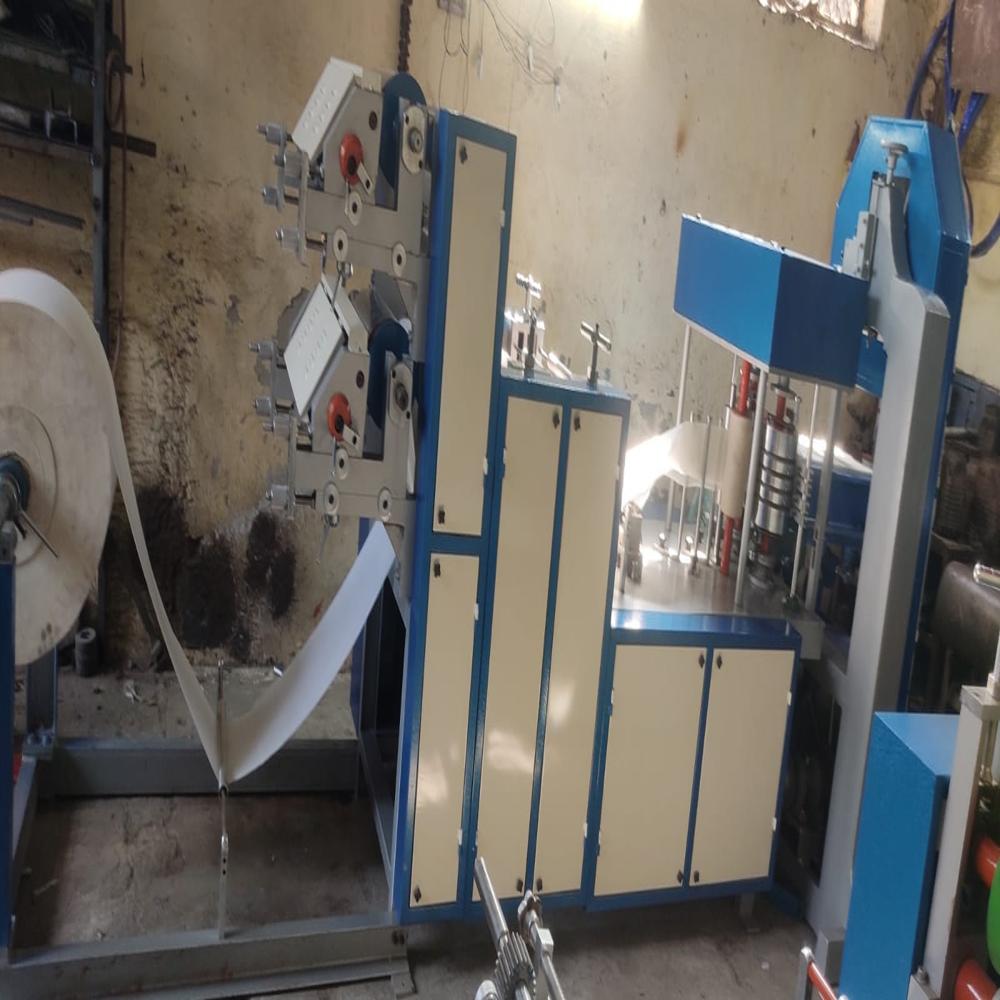

Tissue Paper Making Machine - Double Colour Printing Double Embossing

Price 550000.00 INR/ Number

Get a Price/Quote

Tissue Paper Making Machine - Double Colour Printing Double Embossing Specification

Grade
Automatic

Type
Paper Cutting Machine

Capacity
33000 Pcs/hr

Computerized
Yes

Control System
Frequency Speed Control

Voltage
220 Volt (v)

Power
4 Horsepower (HP)

Weight (kg)
2000 Kilograms (kg)

Dimension (L*W*H)
14.4 Foot (ft)

Tissue Paper Making Machine - Double Colour Printing Double Embossing Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Okhla

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia

Main Domestic Market
All India

About Tissue Paper Making Machine - Double Colour Printing Double Embossing

SINGLE SIZE DOUBLE TRACK TISSUE NAPKIN MAKING MACHINE

Bandsaw paper Napkin Making Machineis used to fold automatically the jumbo roll in to square and ractanglar tissuenapkin. The machine includes embossing, flaxo printing, counting,and foldingunits. The counting system is attached with pneumatic attachment and electronicsensor to vary the counting as per requirement of the customer. An extra driveis provided on the machine to control the speed machine while feeding the paperat the beginning.

S. No.	Description	Data
1.	Jumbo Roll Paper width	30cm, 27cm, 33cm,
2.	Embossing Station	Single/ (As per requirement)
3.	Printing Station	Double Colour printing
4.	Maximum Diameter	1200 mm
5.	Inner Diameter of jumbo roll core	76 mm
6.	Folding
7.	Production Capacity	2,50,000 Pcs Approx, Napkin per shift of 8 hours Varies according to quality and size)
8.	Electrical Power	AC 220 volts 50 hz. Single Phase.
9.	Transmission	Timing Belt
10.	Controlling System	Frequency Drive
11.	Weight of Machine	Double Colour MC(2,000kg Approx) Single Colour MC(1500 Kg Approx)
12.	Embossing Design	Diamond Or As per Party required.
13.	Dimensions of Machine	(D.C)14 ft x 4 ft x 6 ft (S C) 13ft x 4ft x 6ft Approx)
14.	Tissue GSM	15 to 40
15.	Motor	2 HP(AC ) and 2 HP ( DC ) Motors with Drive System (Single Phase)
